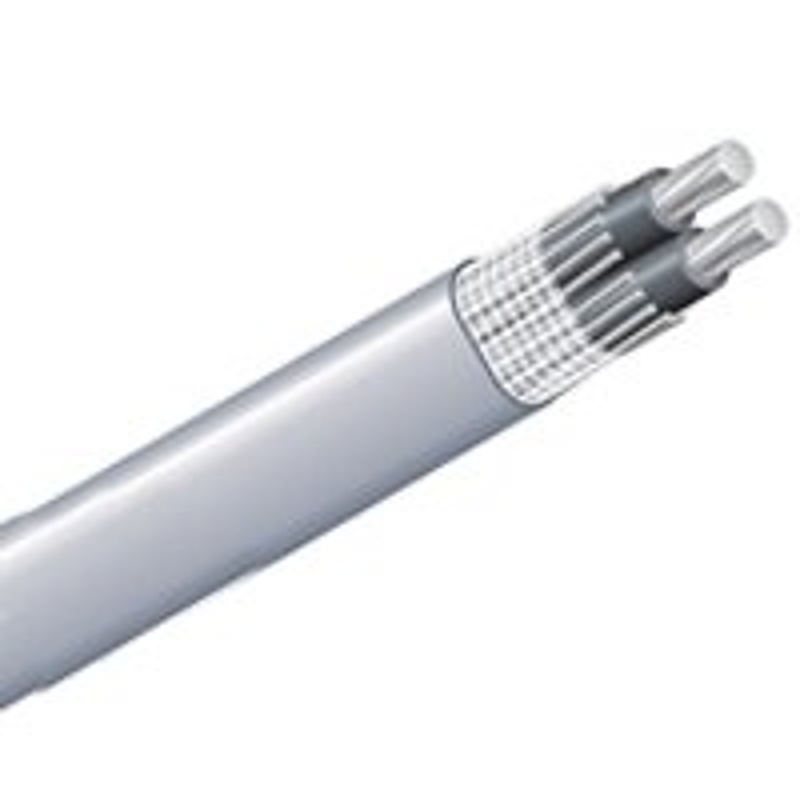

Southwire 6/6/6AX500 Service Entrance Cable, 3 -Conductor, Aluminum Conductor, PVC Insulation, Gray Sheath, 600 V

Southwire

Southwire 6/6/6AX500 Service Entrance Cable, 3 -Conductor, Aluminum Conductor, PVC Insulation, Gray Sheath, 600 V

$1.19$1.19
Southwire 6/6/6AX500 Service Entrance Cable, 3 -Conductor, Aluminum Conductor, PVC Insulation, Gray Sheath, 600 V
  • Conductor Insulation: PVC
  • Conductor Material: Aluminum
  • Current Rating: 60 A
  • Number of Conductors: 3
  • Operating Temperature: 90 deg C
  • Model #: 6/6/6AX500
  • UPC #: 032886580413
  • SKU: 5354246

Your shopping list will be used for pickup in-store

Product Details

Used to convey power from the service drop to the meter base and from the meter base to the distribution panelboard. Also may be used for certain branch circuits as permitted by the NEC. Suitable for use at temperatures not to exceed 90 deg C in wet or dry locations. Meets or exceeds UL Standard 44 for Type XHHW-02 conductors or UL Standard 83 for Type THHN/THWN, UL Standard 854, Federal Specification A-A-5944 and NEC requirements.

Item Specifications

Conductor InsulationPVC
Conductor MaterialAluminum
Current Rating60 A
Number of Conductors3
Operating Temperature90 deg C
Sheath ColorGray
TypeSEU
Voltage Rating600 V
MORE DETAILS:
  • Application: For conveying power from the service drop to the meter base and from the meter base to the distribution panel board
